GLI-CPLB-6163 – Canopy Light E

Canopy Light E

The GLI-CPLB-6163 is a versatile and durable LED canopy light, designed for wide-area illumination in both indoor and outdoor environments. With high efficiency, multiple beam angle options, and robust weather protection, it is ideal for parking garages, loading docks, and commercial canopies.

Certifications:

https://resolvelighting.ca/wp-content/uploads/2025/04/Screenshot-2025-03-31-165553.png
  • Specifications
  • Add to Project

Lighting:

Size
arrow up

Light Source:
Integrated LED
Wattage:
40W
Lumen Output:
3400LM - 3800LM (varies by beam angle)
Efficiency:
85LM/W - 95LM/W
Selectable CCT Options:
3000K, 4000K, 5000K, 6000K
CRI:
80CRI
Beam Type / Beam Angles Available:
10°, 20°, 30°, 45°, 60°
Dimming:
0-10V dimmable (optional)

Installation:

Mounting Options:
Surface Mount, Pendant Mount (3’ cable)
Housing Material:
Die-Cast Aluminum
Lens Material:
Clear Tempered Glass
Gasket Material:
Silicone Rubber
Surface Finish:
3 mils AkzoNobel Powder Coating
Mounting Compatibility:
Standard J-box, Marine-grade corrosion resistance (optional)
Weather Resistance:
IP65-rated for outdoor and damp locations
Operating Temperature Range:
-20°C to +45°C

Electrical:

Voltage Compatibility:
100-277VAC
Driver Type:
Constant Current
Optional Features:
Pendant Mounting (P), Marine Ambient Corrosion Resistance (M), 0-10V Dimming (DM)

Details & Accessories:

Available Finishes:
Black (BK), White (WH), Gray (GR), Mineral Bronze (MB), Silver (SI)

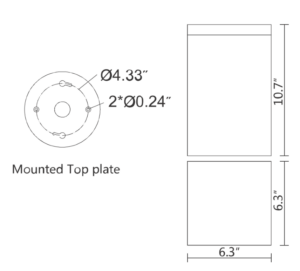

Fixture Dimensions:
N/A
IP Rating:
IP65
Special Features:
Impact-resistant PMMA lens, Low-profile round and square design, Variety of beam angles for tailored light distribution

Certifications:

cETLus Listed
Damp & Wet Location Rated:
Yes

Warranty & Lifespans:

5-year limited warranty, 50,000+ hours
